Product Performance
Frequency range: 1.8MHz-30MHz
Support power: 1. 8-30Mhz S SB/CW 1000W
1. 8-30MHz FM/AM/ FT8 300W
(The above is the maximum power supported. The applicable power may vary in different environments, antennas, and frequency scenarios, and may be lower or higher.)
Tuning power: 1 - 20W ( 5-10W recommended )
Maximum matching: capacitor 1270PF , inductor 12.7UH
Dimensions: 23 cm x 15 cm x 5 cm
Product weight: 1.3KG
Working voltage: 11-15V , recommended 12V , standby current 0.2A , full power 1A
Main chip: A TR-MCU/240MHz / 8M/128M bit
WIFI: Support hotspot mode and client mode
Remote control: support hotspot, LAN control; support Internet control (optional function)
Speaker: 3W
Morse practice: supports single-paddle and double-paddle keys
A DC accuracy: 16 - bit high precision
Display screen: 1.8 - inch TFT high-definition color display
Supported languages: Chinese, English

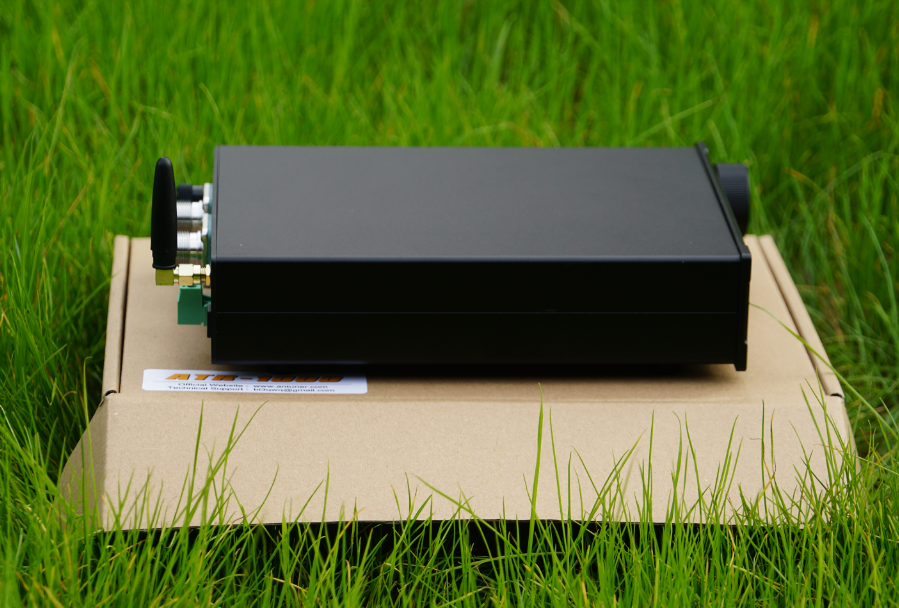

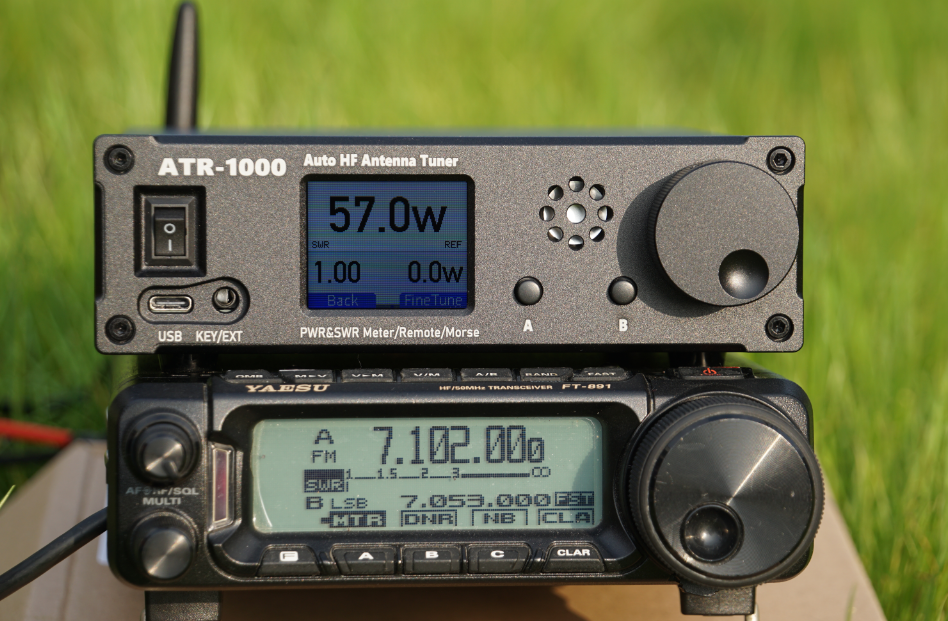

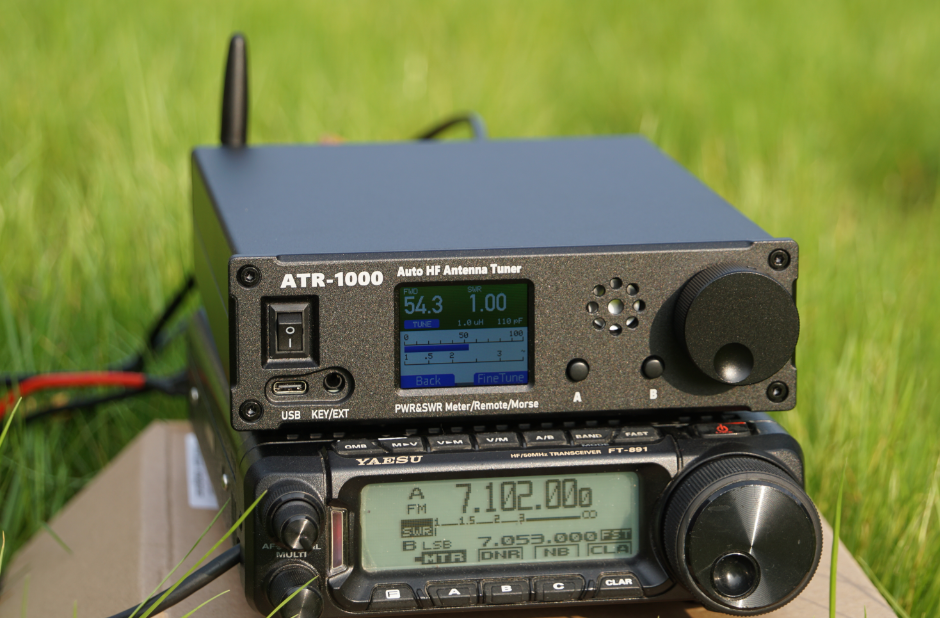

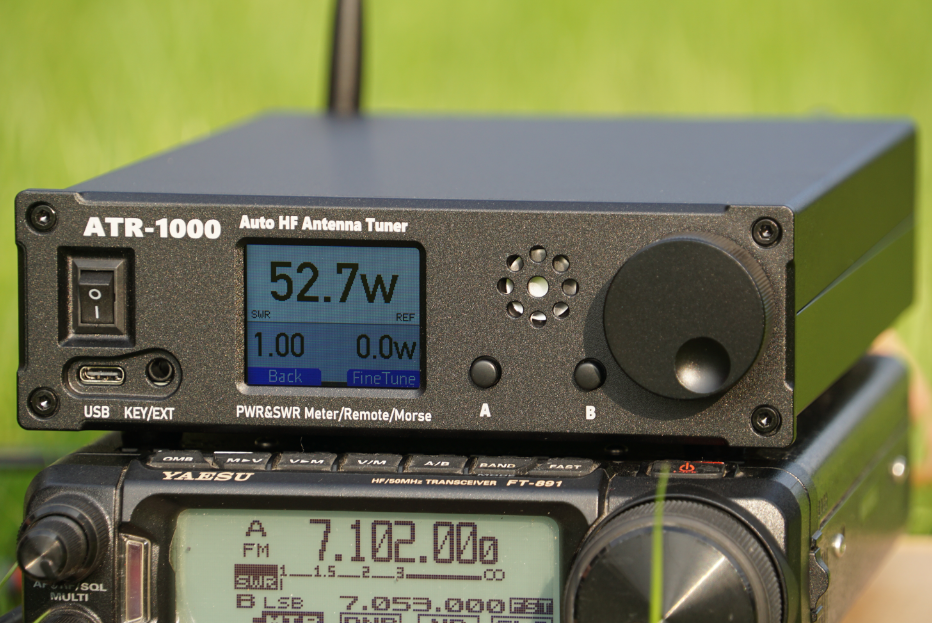

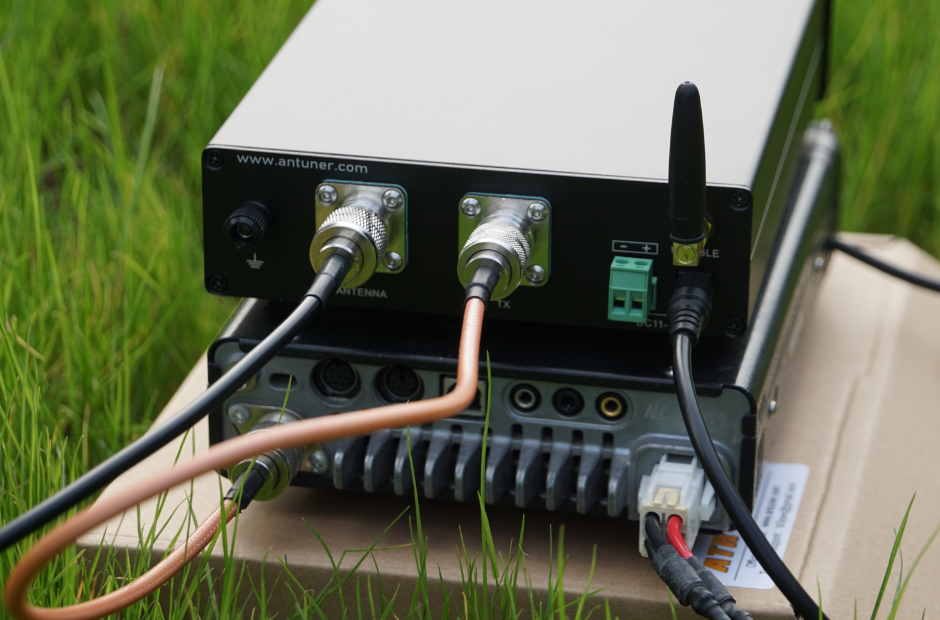

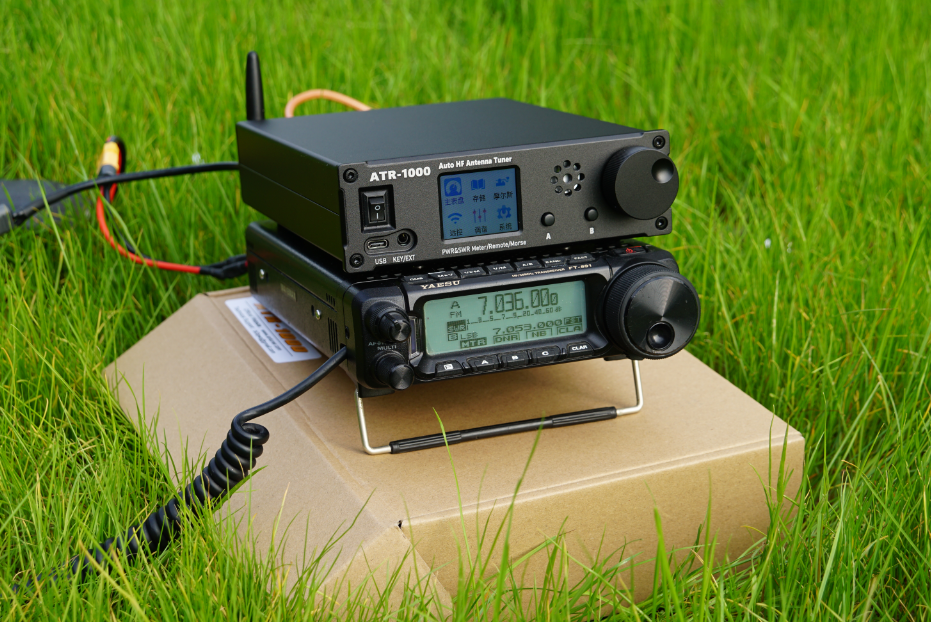

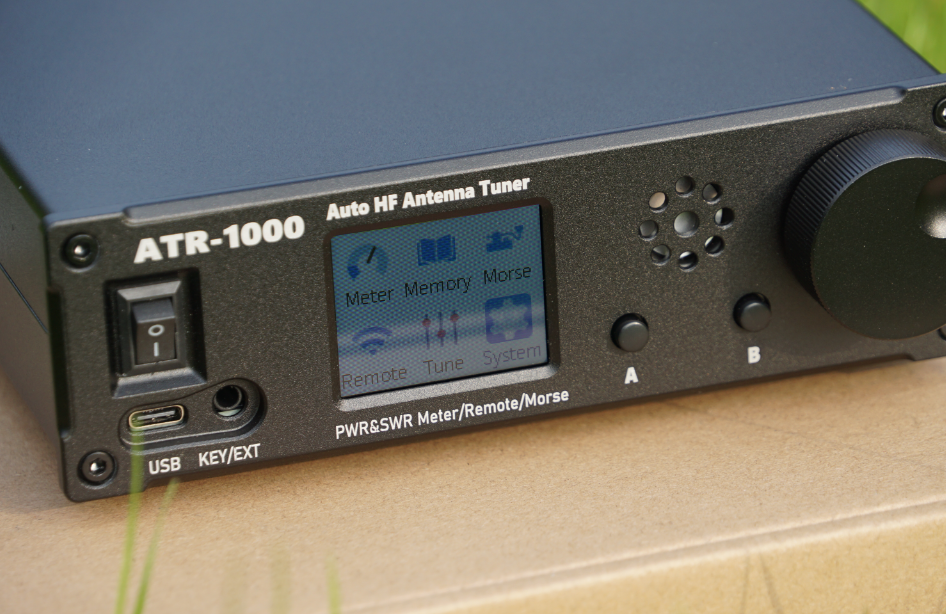

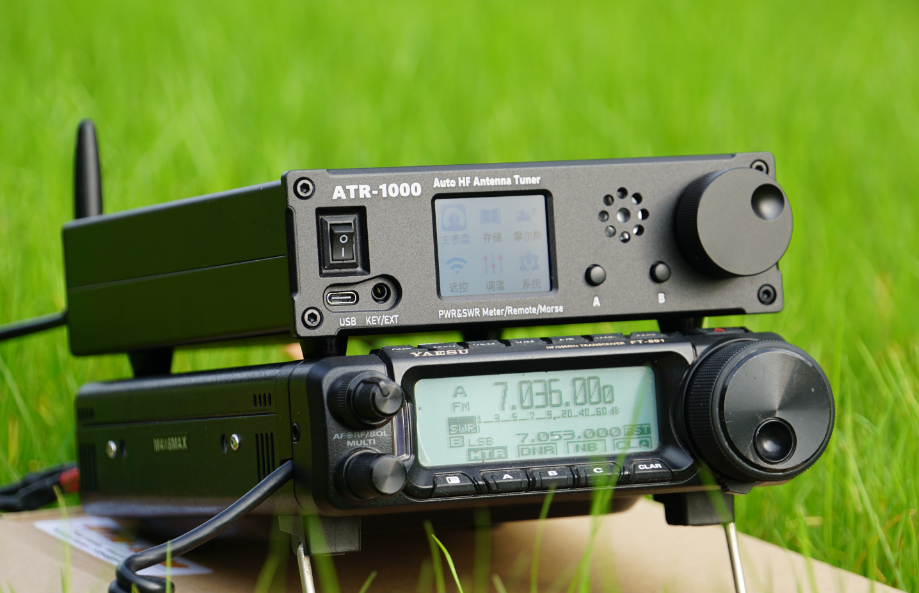

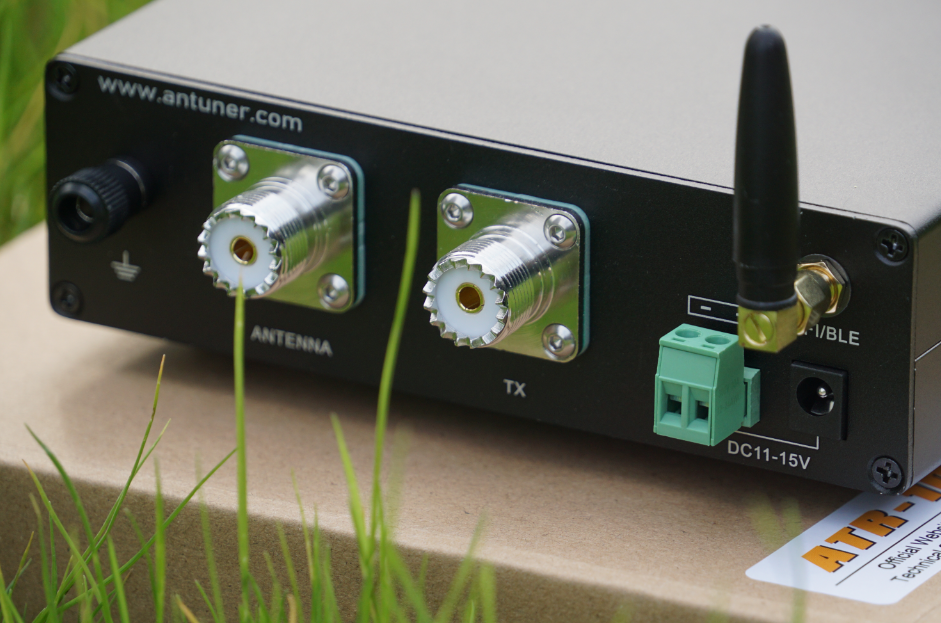

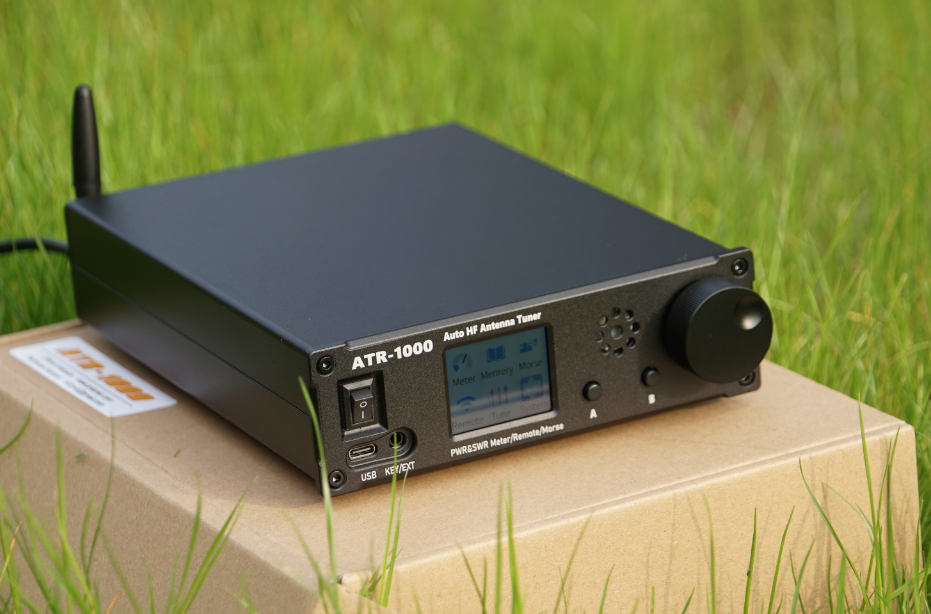

Photos
